Specifications
| CODE | 21323 | ||
| DESCRIPTION | REEFE RPS34E Pressure Pump & RMV3550 | ||
| HP | 0.5 | KW | 0.37 |
| MAXIMUM FLOW | 80 L/min | MAXIMUM HEAD | 32m |
| NO. OF IMPELLERS | 3 | CABLE LENGTH | 10m |
| PUMP SIZE (DIA x H) | Ø127 x 502 | ||

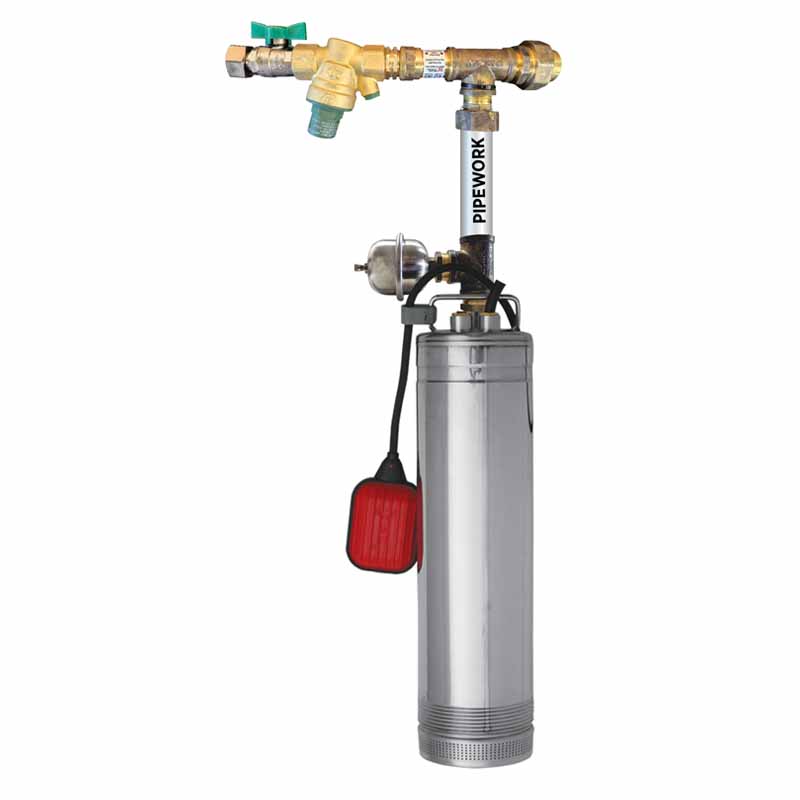

RM5000-3 RPS34E with RMV3550 Valve
The RM5000-3 features a Submersible Multistage Pressure Pump with integral controller, specifically designed for fast and easy installation. The pump is European made, guaranteeing exceptional quality and performance in Rainwater supply applications. This system is suitable for underground tanks and best suited for supply to toilet, laundry and garden taps/outlets.
Features & Benefits
PUMP
Automatic start and stop on demand
Mains Flow up to 50L/Min
Integrated pressure controller with 220kPa/2.2 bar cut-in
Supplied with 10m H07RN-F cable
Integrated run-dry protection
Internal blockage detection system, which shuts down the pump if debris obstructs the internal check valve
Compact design, water-cooled motor
Thermal overload protection
RM SYSTEM
Rain to Mains Valve
Integrated check valve, 100% Hydraulic
Corrosion resistant
Certified to AS/NZS4020 for use with potable water
WaterMark Certified #022109
Construction
Stainless Steel AISI 304 Pump body, motor shaft, handle, cover, screen
Polymer Impellers, diffusers
Alumina Graphite, lubricated mechanical seal
Applications
Domestic toilet & laundry
Small house / cabin / granny flat (1 bathroom)
Small commercial / industrial*
Garden irrigation*
Toilet blocks (up to 6 fixtures)*
Construction / mine site offices*
Underground & Slimline tanks*
*Check specifications required
